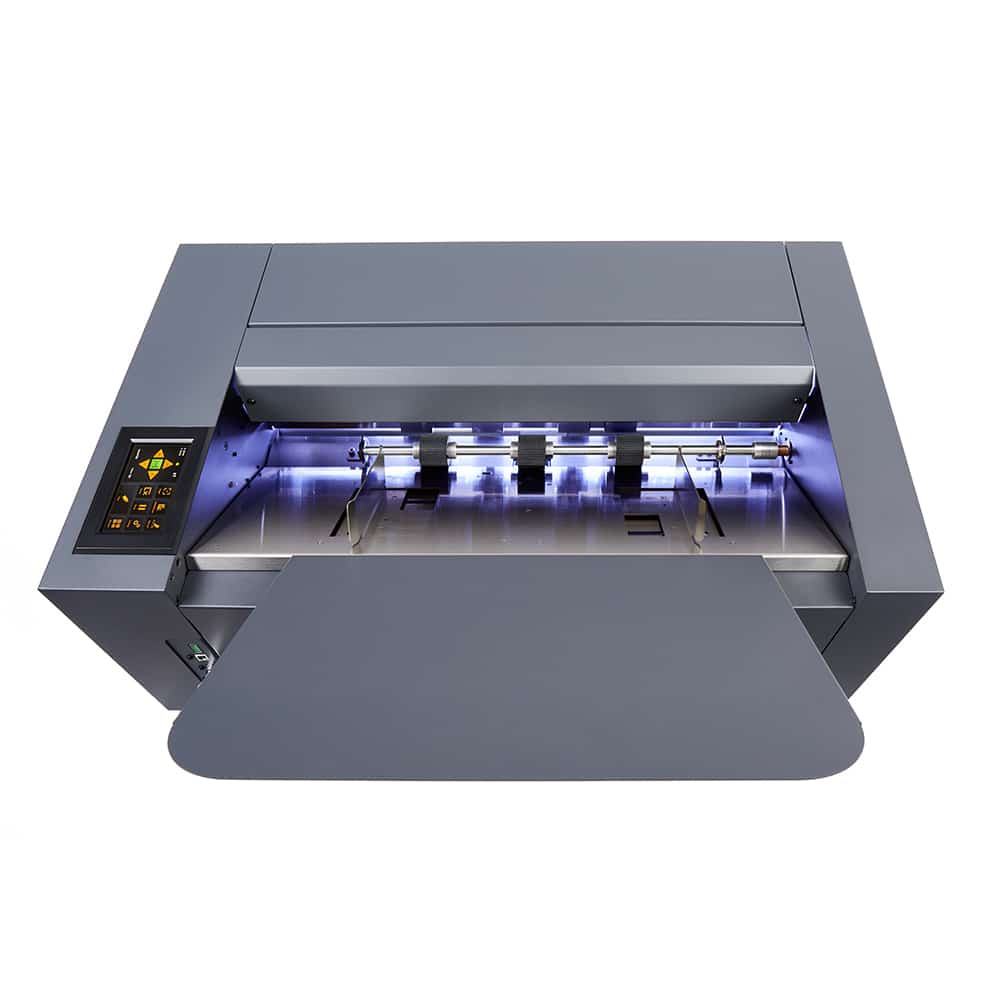

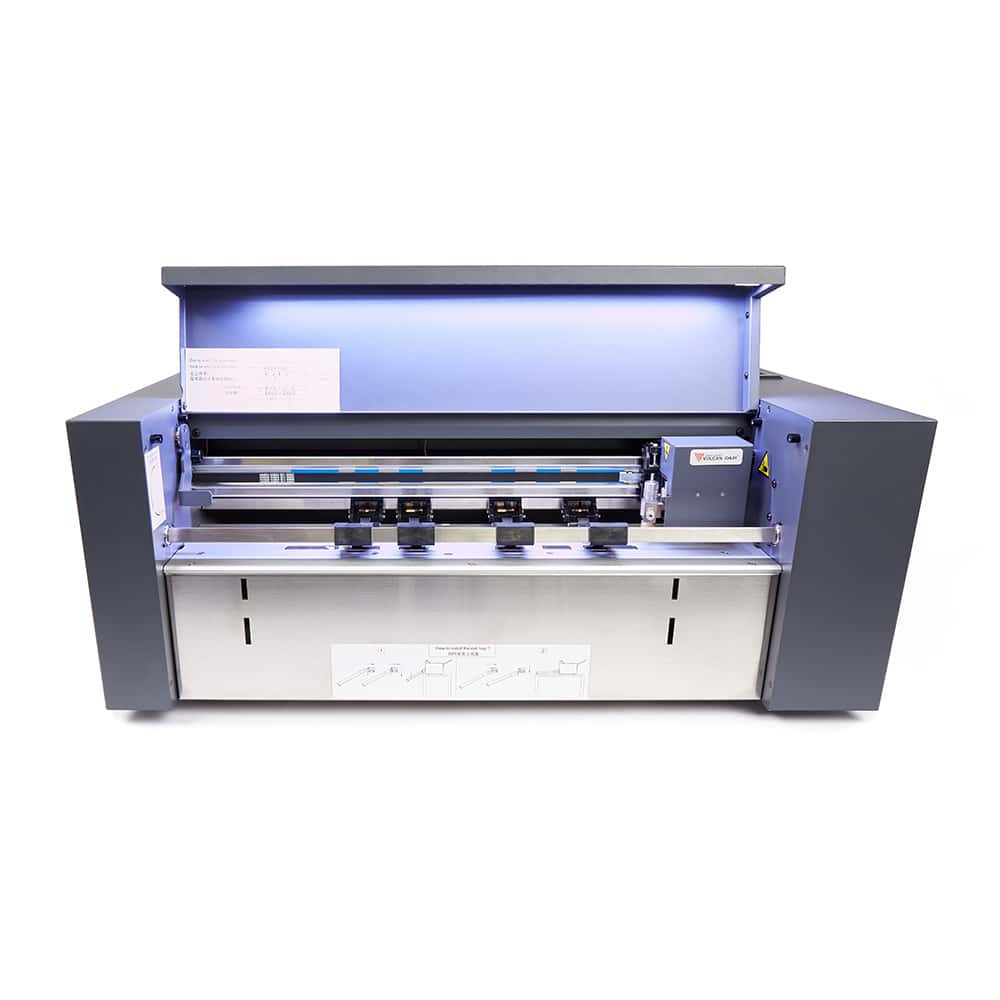

SC-350
Reliable & automatic
Produce contour-accurate labels and stickers from sheets up to 350 × 500 mm. The Vulcan SC-350 is the ideal solution for automatic, precise and extremely fast cutting of stickers and labels in any shape — high costs for cutting are no longer necessary.
Its independent and economical operation makes it ideal for small and medium series. Thanks to its simple, intuitive operation, Vulcan devices can be quickly put into operation and easily handled by untrained staff.
Specifications
Highlights
High-resolution CCD camera
Saves production time by scanning four marks in under 3 seconds. Reads 5 mm registration marks on coloured and transparent materials.
Purpose-built development
Designed from the ground up as a sheet cutter — sophisticated, well thought-out technology for the optimal use case.
Accurate cutting slide
High-quality materials such as aluminium guarantee longer service life, high precision and efficiency. A 6 cm circle is cut 24 times in 23.5 seconds.

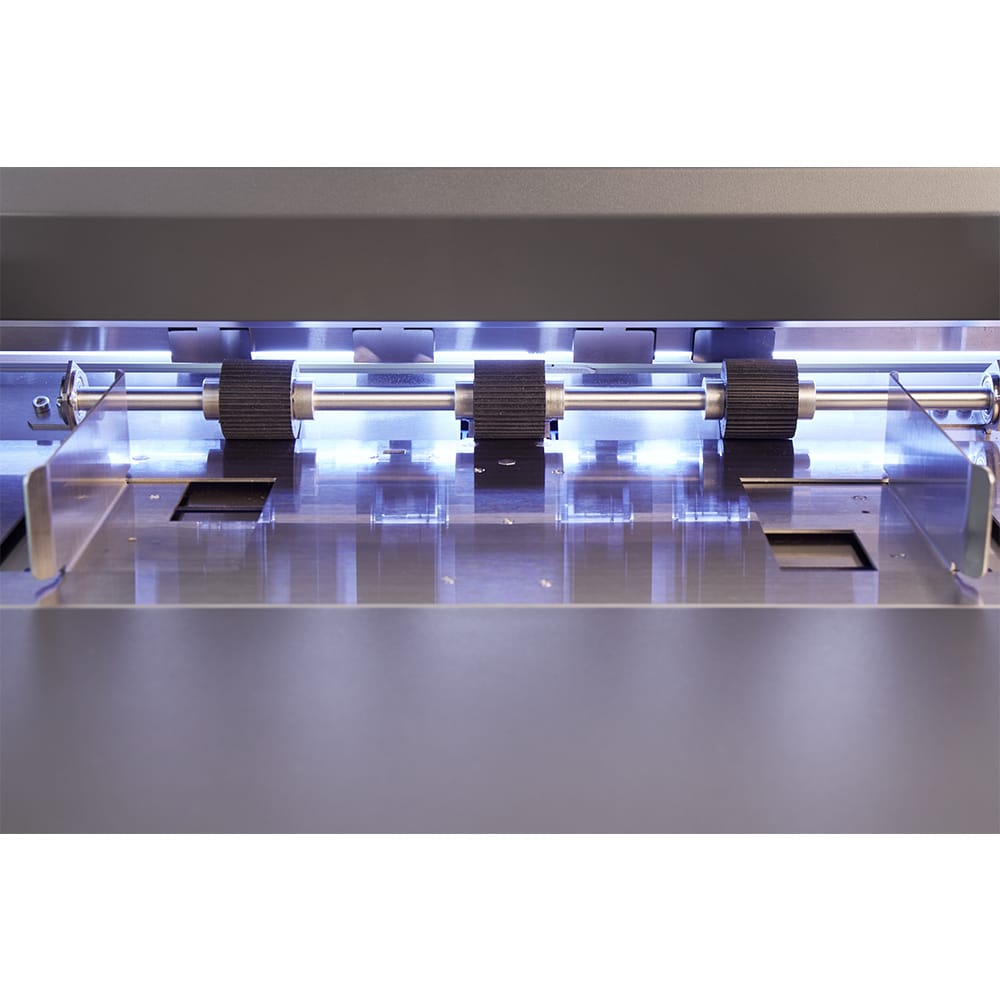

Automatic feeder
Up to 300 sheets loaded at once, mixed designs in one batch, formats A4–SRA3, paper feed in 3 seconds.
USB interface
Direct USB connection to a computer or stand-alone operation via USB stick. Includes a SignCut live licence for 4 PCs/Macs.
QR code system
QR codes enable automatic matching of print and cut files.
Robust communication
Multiple units controllable from one computer. Stable communication even over long distances.
Service & support
Free telephone support, free remote assistance, on-site training on request, personalised support and a 24-month warranty.
Application examples
Application examples
Whether labels, tags or stickers, as a hobby or in the advertising industry — the Vulcan SC-350 impresses with its precision and speed.
Suitable materials
Suitable materials
- Paper
- Strong paper
- Photo paper
- T-shirt transfer paper
- Photo-quality inkjet cards
- Stickers
- Glossy paper
- Transparent film
Technical data
Technical data
- Machine type
- Auto feeding label cutter
- Max. cutting speed
- 1200 mm/s
- Downforce
- 10–400 g, adjustable in 1 g steps
- Min. cutting size
- 5 mm²
- Feeding time
- 2 s
- Mechanical resolution
- 0,0124 mm
- Interfaces
- USB 2.0 (full speed) / USB-Stick / Ethernet
- Command set
- HP-GL
- Control
- Backlit 4.3-inch touch LCD display
- Power consumption
- 100–240 V AC, 50/60 Hz, 60 W
- Operating environment
- 10–35 °C / 35–75 % RH
- Number of tools
- 1 tool
- Tool type
- Drag knife
- Dimensions
- Output tray: 406 × 462 × 186 mm · Cutter + tray: 1109 × 747 × 594 mm
- Weight
- 33 kg / 36 kg
- Compatible OS
- Windows, macOS
Vulcan SC-350
