FC-500VC / FC-700VC
The best in digital print finishing
Labels, stickers, packaging and prototypes — cut anything in any shape, without expensive cutting dies. The Vulcan FC-500VC and FC-700VC flatbed cutting plotters produce product labels, warning plates, short-run packaging and design samples straight from a stand-alone device.
Maximum precision in (contour) cuts and folded edges is the hallmark of Vulcan products. In addition to small to medium runs, design samples can be produced flexibly and efficiently — with Vulcan, you work economically from a single piece onwards.
Specifications
Highlights
Simultaneous cut & crease
Save time and money. Cuts along coloured contour lines; the creasing tool enables tear-free folding or decorative embossing.
USB interface
Direct USB connection to a computer or stand-alone operation via USB stick. Includes a SignCut live licence for 4 PCs/Macs.
QR code system
Automatic matching of print and cut files. QR codes simplify finding designs in folders on the company network.
High-resolution CCD camera
Saves production time by scanning four marks in under 3 seconds. Reads 5 mm registration marks on coloured and transparent materials.
Intuitive touchscreen
Vacuum suction control for stable holding, easy speed changes, precise positioning by setting the origin, and perfect reproducibility with a recut button.
Precise cut
Compensation for pressure or positioning misalignment. Cutting depth up to 1.75 mm (depending on material and blade length). Four-mark scanning for size, tilt and deformation.
Robust communication
Multiple units controllable from one computer — and one plotter from multiple computers. Stable communication even over long distances.
Service & support
Free telephone support, free remote assistance, on-site training on request, personalised support and a 24-month warranty.
Application examples
Application examples
Whether as an entry into self-employment or as an extension of existing equipment — Vulcan products are universally applicable.
Suitable materials
Suitable materials
- Paper
- Cardboard / kraft paper
- Foil
- Plastic / PPE up to 0.7 mm
- Foam plastic
- Leather
- Wood veneer
- Balsa wood
- Corrugated cardboard — single ply up to 600 g/m²
- Magnetic foil
- Sealing material
- Sponge rubber
- Cellular rubber
Application examples
Use cases

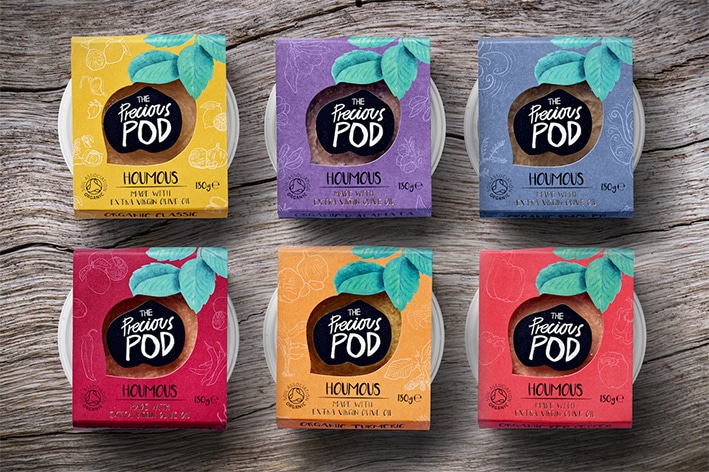

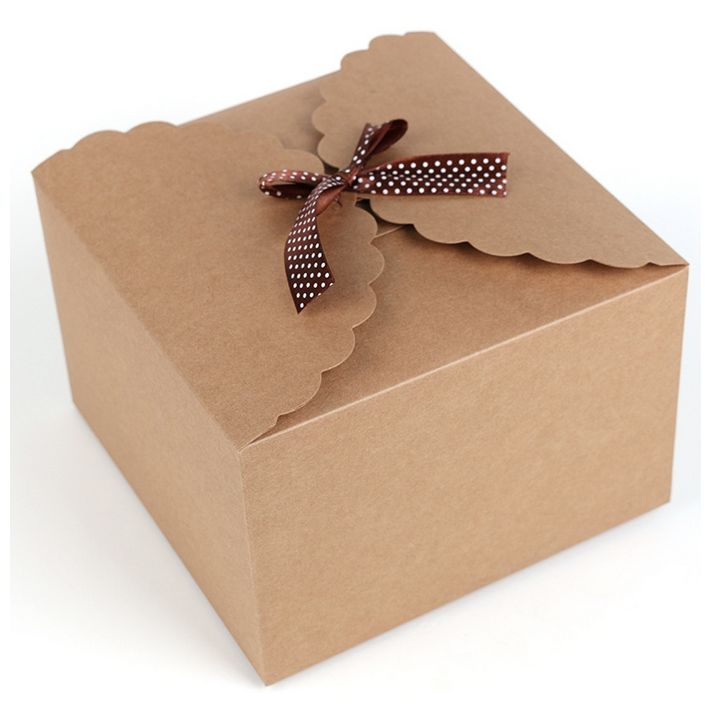

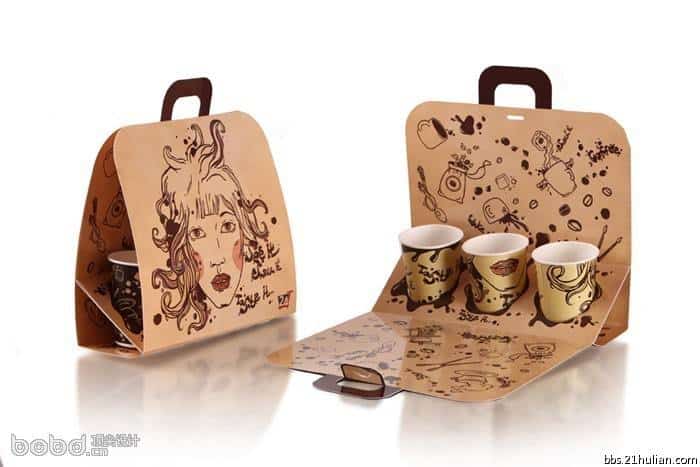

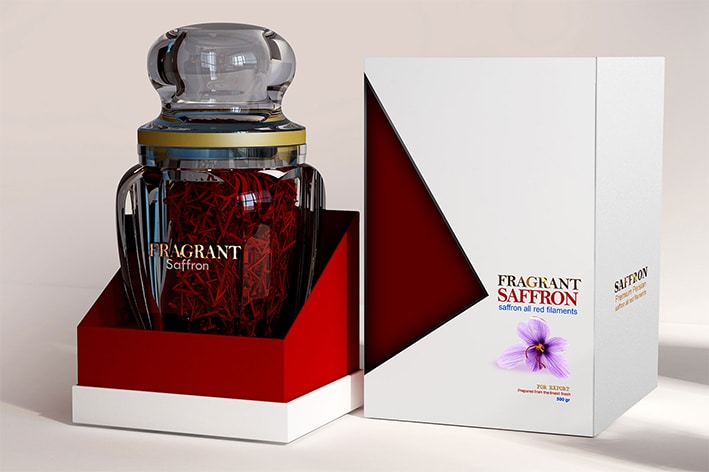

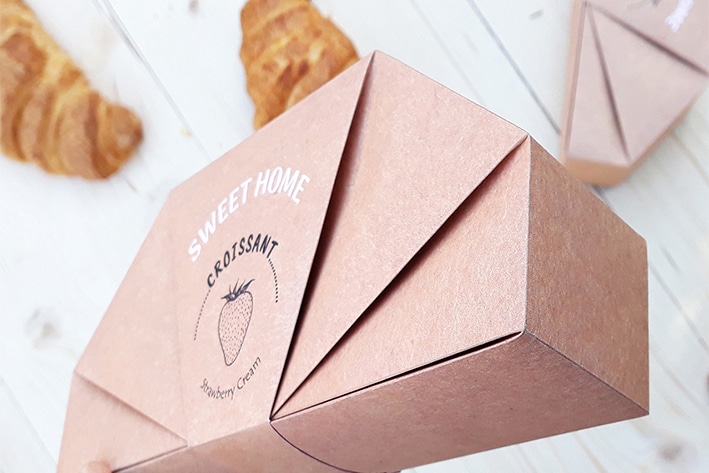

- Outer packaging
- Labels

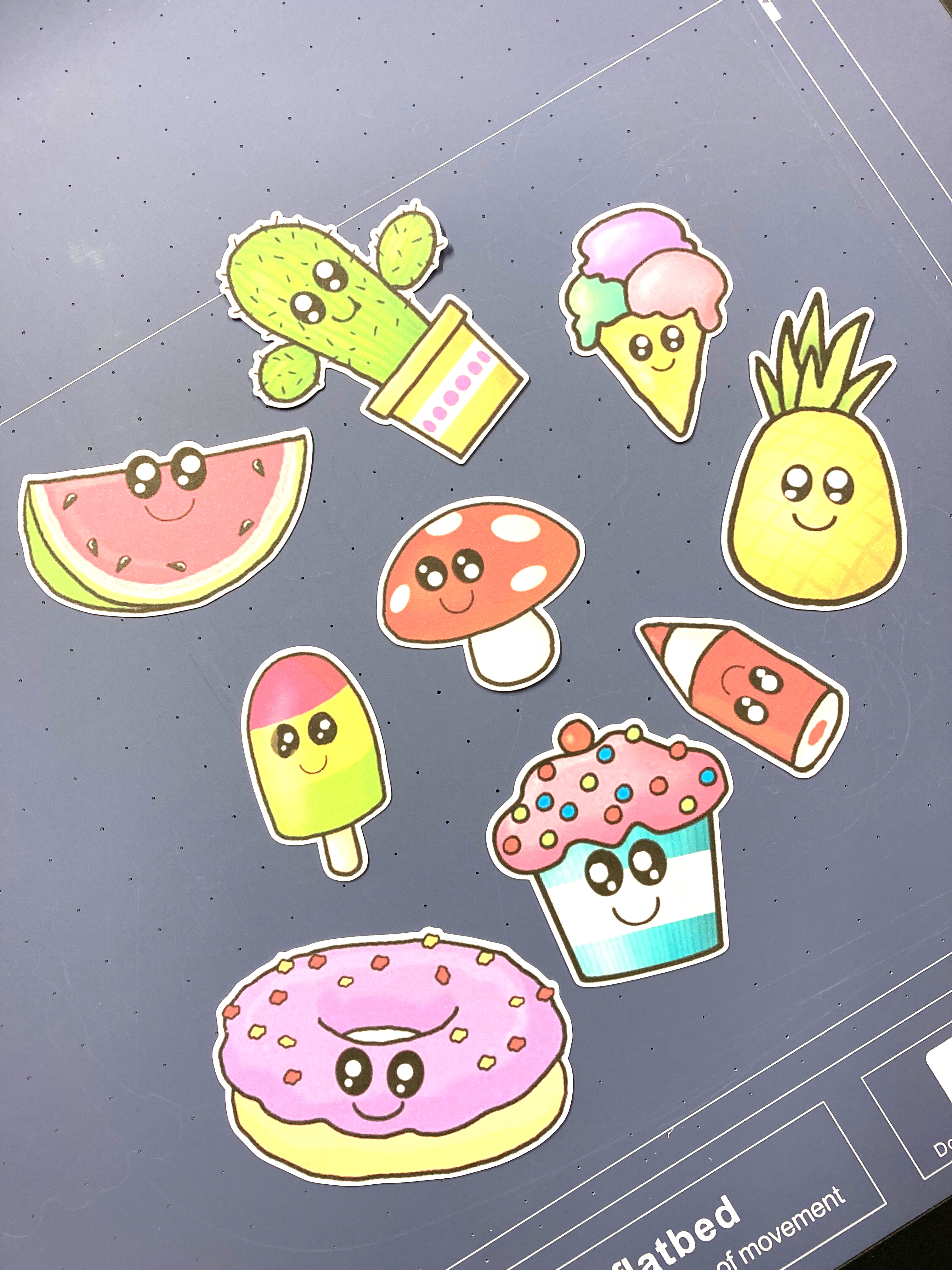

- Stickers

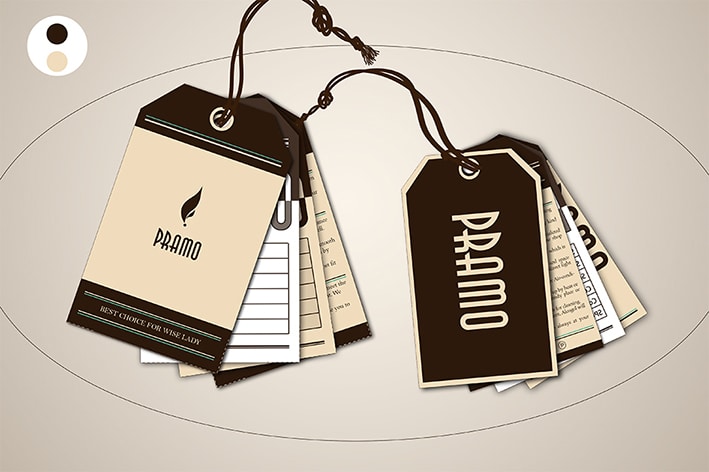

- Hang tags

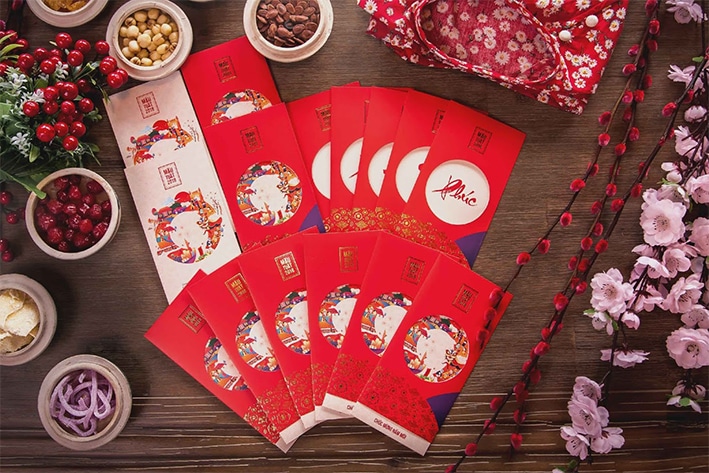

- Hobby
- Product labels
- Warning and identification labels
- Greeting cards
- Display stands
- POS displays
Technical data
Technical data
- Machine type
- Digital servo system, flat bed
- Media hold-down
- Vacuum suction
- Max. cutting speed
- 700 mm/s
- Downforce
- Tool 1: max. 5,88 N (600 gf) · Tool 2: max. 5,88 N (600 gf)
- Max. work area
- 480 × 660 mm / 775 × 1060 mm
- Mountable media (Y-axis)
- 640 mm / 940 mm
- Min. cutting size
- 5 mm²
- Mechanical resolution
- 0,005 mm (5 µm)
- Programmable resolution
- HP-GL: 0,025 mm
- Reproducibility
- 0,1 mm
- Interfaces
- USB 2.0 (full speed) / USB-Stick / Ethernet
- Memory
- 32 MB
- Command set
- HP-GL
- Number of tools
- 2 tools
- Tool types
- Ball-bearing drag knife, calibration pen, creasing tool
- Control
- Backlit 4.3-inch touch LCD display
- Power consumption
- Max. 150 W (machine), Max. 550 W (vacuum pump)
- Operating environment
- 10–35 °C / 35–75 % RH
- Dimensions
- 981 × 977 × 1047 mm / 1420 × 1212 × 1050 mm
- Weight
- 105 kg / 77 kg (machine), 23 / 20 kg (vacuum)
- Compatible OS
- Windows, macOS
Vulcan FC-500VC / FC-700VC
