THE BEST IN DIGITAL FINISHING
from labels to repackaging
Labels and stickers can be cut quickly and in any individual shape with the FC-500 VC or 700 VC flatbed plotters without expensive cutting dies.
Both product labels, warning and type plates in very short runs and individual outer packaging can be produced with the stand-alone device. Maximum precision in (contour) cuts or folded edges is the main feature of Vulcan products. In addition to the production of small to medium runs, design samples can also be produced flexibly and efficiently – because with Vulcan, you can work economically from just one piece!
SPECIFICATIONS
The Vulcan FC-500VC flatbed cutting plotter is ideal for light to medium production and design samples. Ideally suited for packaging boxes, tags, cards and labels.
SIMULTANEOUS CUTTING & CREASING
-
- Simultaneous cutting and creasing saves time and money
- Cutter cuts along coloured contour lines
- Creasing tool enables tear-free folding or decorative embossing

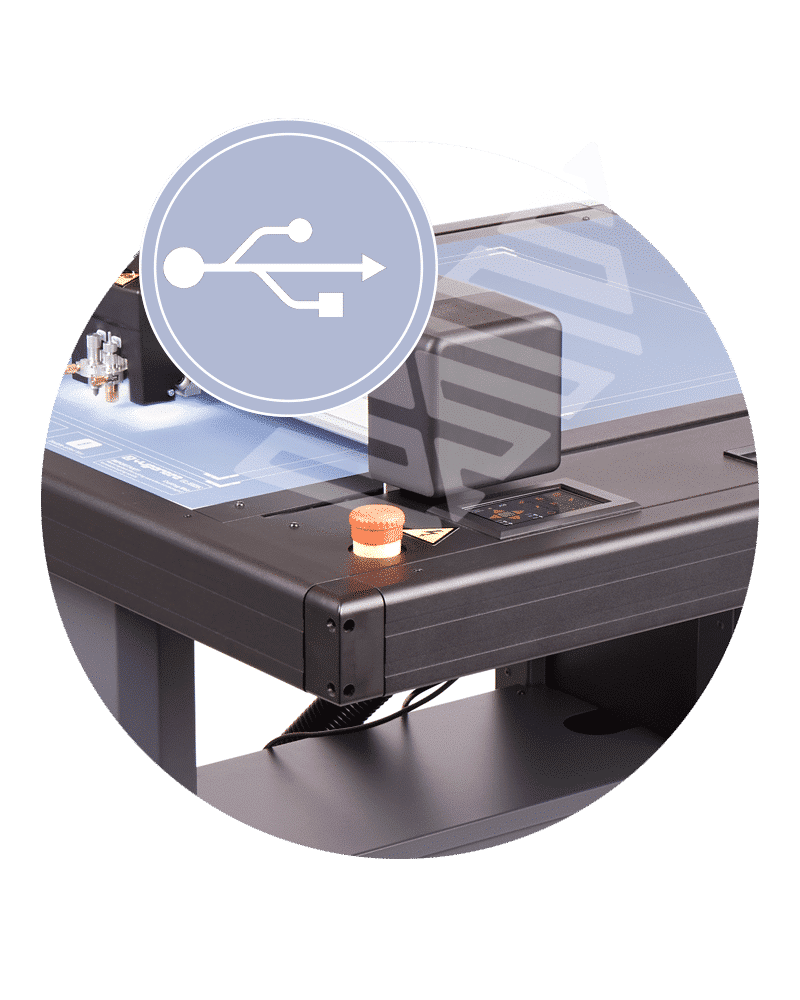

USB INTERFACE
- Control 1: Direct connection to computer via USB stick, with included SignCut 3 year licence that can be installed on 4 PCs/MACs simultaneously.
- Control 2: Store PLT data on USB stick or hard drive for use without computer
QR CODE SYSTEM
- Enables automatic matching of print and cut files
- Simplifies retrieval of desired designs from folders on corporate network
SOPHISTICATED COMMUNICATION
- QR code makes it easy to locate designs in folders on the company network
-
Robust communication over long distances
-
Multiple units can be controlled from one computer
-
Control a Vulcan sheetfed plotter from multiple computers
HIGH RESOLUTION CCD CAMERA
-
Saves production time by scanning four marks in less than 3 seconds
-
Recognition of 5mm registration marks
-
Readable on coloured & transparent materials
-
Save material and reduce costs with space-saving registration marks
INTUITIVE TOUCHSCREEN
-
Vacuum suction control for stable holding or changing of media
-
Easy change of cutting speed
-
Exact positioning by setting the origin
-
Perfect reproducibility with recut button
PRECISE CUT
-
Compensation for pressure or positioning misalignment
-
Cutting depth of 1.75 mm (depending on material and blade length)
-
Scanning of 4 marks for precise size, tilt and deformation settings
SERVICE & SUPPORT
-
Free telephone support
-
Free remote assistance
-
On-site training on request
-
Personalised support
-
24 month warranty
We advise you antime!
OLIVER TIEDEMANN
CEO
“With digital finishing, you can work profitably from the first unit onwards. Digital finishing is therefore a topic for all print service providers to be able to offer new services. Large printers can serve special requests for short-run marketing campaigns or dummies, while small printers in general can open up new business areas.”
If you would like to get to know our products, we will be happy to visit you with our demo tour team. We will consult you in German, English, Russian, French, Arabic and Lithuanian.
DOWNLOADS
START A FIRE OF CREATIVITY WITH FC-500VC/700VC
The Vulcan FC-500VC and 700VC flatbed cutting plotters combine maximum precision, intuitive operation and modern design with first-class quality standards – equipment that is second to none.
Whether as an entry into self-employment or as an extension of existing equipment – the Vulcan products prove to be universally applicable:
Suitable materials for processing:
- Paper
- Cardboard / kraft paper
- Foil
- Plastic / PPE up to 0.7 mm
- Foam plastic
- Leather
- Wood veneer
- Balsa wood
- Corrugated cardboard – single ply up to 600g/sqm
- Magnetic foil
- Sealing material
- Sponge rubber
- Cellular rubber
Application samples:
- Outer packaging
- Labels
- Stickers
- Hang tags
- Hobby
- Product labels
- Warning and identification labels
- Greeting cards
- Display stands
- POS displays
LOOK AT ME!
The Vulcan FC-500VC Flatbed Cutting Plotter – an absolutely fantastic device.
Here you experience shapely design and precise operation in perfect combination.
TECHNICAL DATA
| Machine type | Digital servo system, fl at bed |
| Media hold down method | Vacuum suction |
| Max. cutting speed | 700 mm/s |
| Downforce | Tool1: Max.5.88N(600 gf) Tool 2: Max. 5.88 N (600 gf) |
| Max. work area | 480 x 660 mm / 775 x 1060 mm |
| Mountable media (Y-axis) | 640mm / 940mm |
| Min. cutting size | 5 mm² |
| Mechanical resolution | 0.005 mm (5µm) |
| Programmable resolution | HP-GL: 0.025 mm |
| Reproducibility | 0,1 mm |
| Interfaces | USB 2.0 (full speed) / USB-Stick /Ethernet |
| Memory | 32 MB |
| Command Set | HP-GL |
| Number of tools | 2 tools |
| Tool types | Ball-bearing drag knife, calibration pen, creasing tool |
| Control | Backlit graphic, 4.3-inch touch LCD display |
| Power consumption | Max. 150W (machine), Max.550W (vacuum pump) |
| Operating environment | Temperature: 10 to 35 degree C (35 to 95 degree F) |
| Humidity | 35 – 75 % RH (not condensing) |
| Dimensions | 981(Y) x 977(X) x 1047(H)mm / 1420(Y) x 1212(X) x 1050(H)mm |
| Packing dimensions | 115 x 110 x 61 cm (machine) 44.5 x 43 x 37 cm (vacuum pump) / 168 x 153 x 61 cm (machine) 78 x 67 x 72 cm (vacuum pump) |
| Weight | 105 kg / 77 kg (machine), 23 / 20 kg (vacuum) |
| Compatible operating system | Windows and Mac |
